New Amp at last

jbryant_77

Active Member

• Feb 20, 2012

• #1

Ok its done well the first half is done anyway.. Started this a few weeks ago and just got around to finishing it up this weekend..

One more to go and ill have stereo...

Let me know what you think...

Thanks for looking
Jason



battradio

Electron trainer

• Feb 20, 2012

• #2

Thats an impresive metomorphis from its humble beguinings .

Mark



squirrelnest

Lunatic Member

• Feb 20, 2012

• #3

Very nice clean job...I like those wire windings....nice detail...



jbryant_77

Active Member

• Feb 20, 2012

• #4

Thanks for the comments...

That wiring came out nicer than expected.. Very time consuming making it look that clean..

Jason



bricktop

Couch woofer

• Feb 20, 2012

• #5

Old-school, nice. What's the circuit?



jbryant_77

Active Member

• Feb 20, 2012

• #6

The circuit is a modded boozehound labs..

Its a 6j5 driving a triode strapped 6v6 SE.... 5v4g rec.. dead silent circuit

Jason



RevMen

The Reverend Menacer

• Feb 20, 2012

• #7

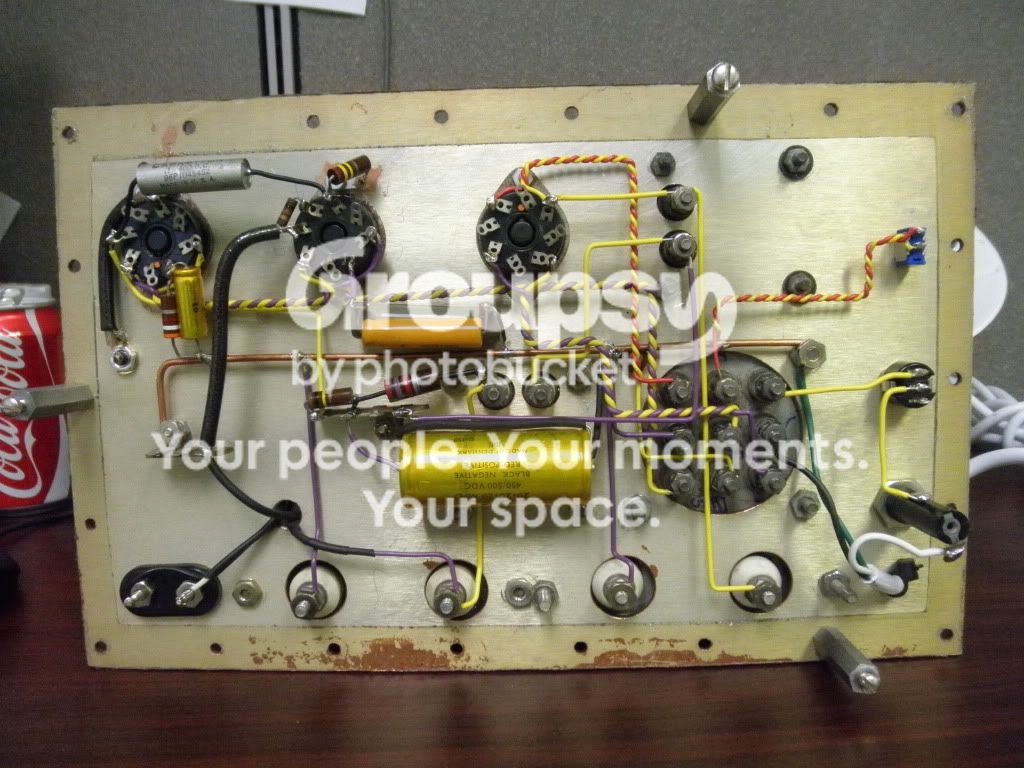

What does the little blue switch(?) do that's in the upper right corner of the underside shot?

Very nice wiring job. Meticulous.



jbryant_77

Active Member

• Feb 20, 2012

• #8

The little blue switch lifts the high voltage center tap putting the amp into standby mode..



T

turkey

Active Member

• Feb 20, 2012

• #9

Interesting because there is really not much to it, or just because it is that clean it looks empty...



BinaryMike

Pelagic EE

• Feb 20, 2012

• #10

Neat work, but the orange cap is way too close to that big WW cathode bias resistor. Heat kills lytics.



jbryant_77

Active Member

• Feb 21, 2012

• #11

Please keep the comments coming. That wirewound resistor doesnt even get warm the voltages are kinda low in this amp.
Started the build of amp #2 afterwork yesterday about halfway done will post pics soon...

For those interested the build is below

http://www.audiokarma.org/forums/showthread.php?t=330611

Jason



gearhound

Lunatic Member

• Feb 21, 2012

• #12

Your wiring is outstanding!!
MY problems is I do NOT have the patience for such precise work?

MY loss..........................................................

Steve



jbryant_77

Active Member

• Feb 21, 2012

• #13

much thanks Steve



drtool

It might get loud In Houston

• Jul 27, 2015

• #14

J, did you safety wire pliers for the wiring work? Either way, first class.



jbryant_77

Active Member

• Jul 27, 2015

• #15

I use a drill and do about 8 feet at a time.. I put one end in a vice and keep it pulled very tight while twisting it..
Jason
