Need help on Marantz 2275

[shaman007]

I am recapping and restoring a Marantz 2275. While changing the lamps, I needed to change the lamp holder as the old one had melted due to excessive heat I guess from the original lamps. I took pictures but deleted them showing the wiring on the new lamp holder. Can someone show a picture of their 2275 where the wires go on the dial lamp board which is part PZ01 in the service manual. I have enclosed a photo. I have four wires that I'm dealing with. All help would be appreciated. I'm new to this type work.



[Punker X]

I'm going to move this over the Marantz forum where you are more likely get get noticed by a 2275 owner



[dankik]

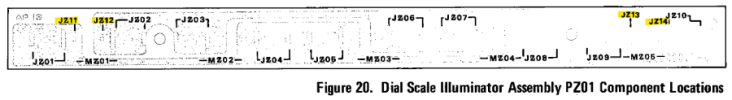

Hi, welcome to AK. This wiring diagram is from the 2275 schematic located here:
https://akdatabase.com/AKview/albums/userpics/10007/Marantz 2275 Schematic HiRes ALL.pdf

1. Two green wires from the transformer secondary go to JZ11 and JZ12
2. Ground wire (probably black connected to chassis and meter lamps) goes to JZ13
3. Wire (maybe orange/yellow) from the meter lamps goes to JZ14

Hope this helps.



[shaman007]

Thanks for the help! I may be back. I'm new to this stuff. I appreciate your help!
