Receiver and Amp nudies! Post them if ya got them!
- Thread starter alexkerhead
- Start date
Did'nt read the entire thread so this unit might be already shown. A close up of my avatar? Pioneer A-27
Congrats Jadam, on your near completion of your SX-880! The satisfaction level is always through the roof on your first rebuild. Also a belated welcome to AK is in order.
Packetswitch
New Member

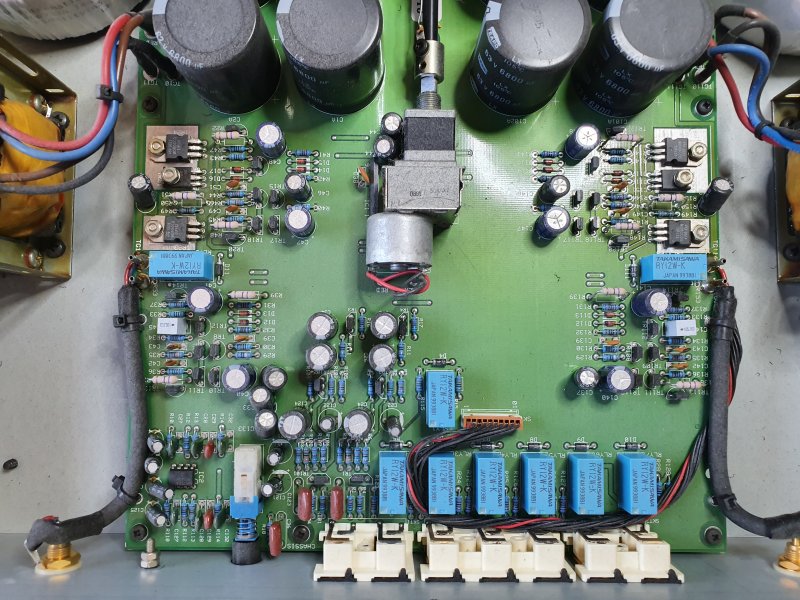

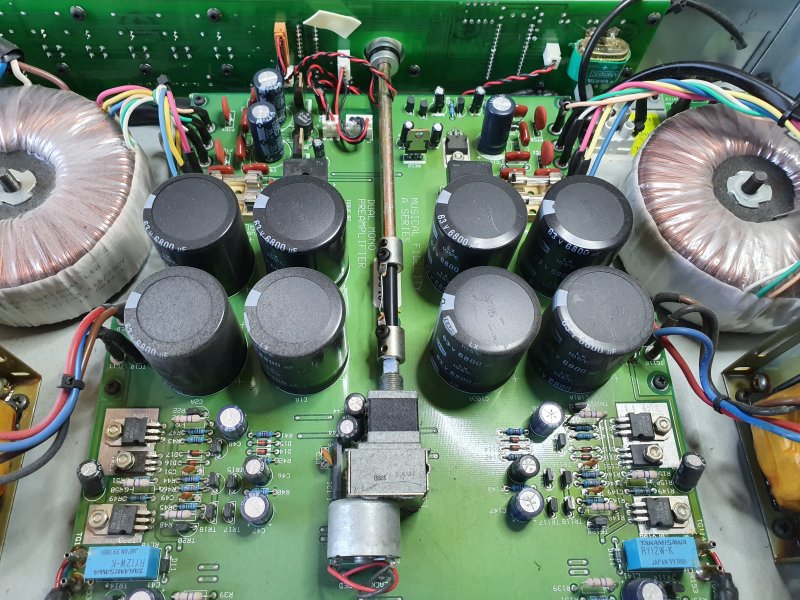

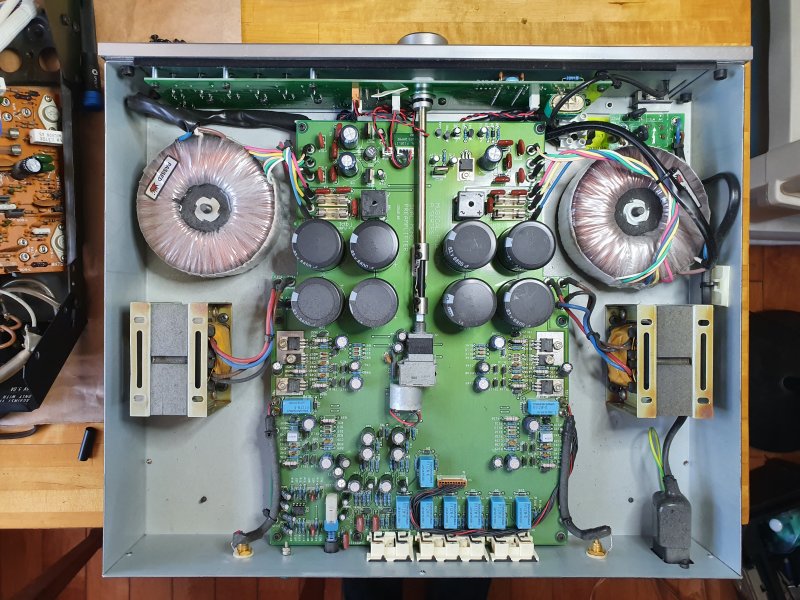

Here's a Musical Fidelity A3cr pre and power amp combo. Popped the case just to resolder a broken RCA jack in the power amp - the bolt had worked loose and the wire broke. Figured I'd tighten the bolts in the preamp as well.

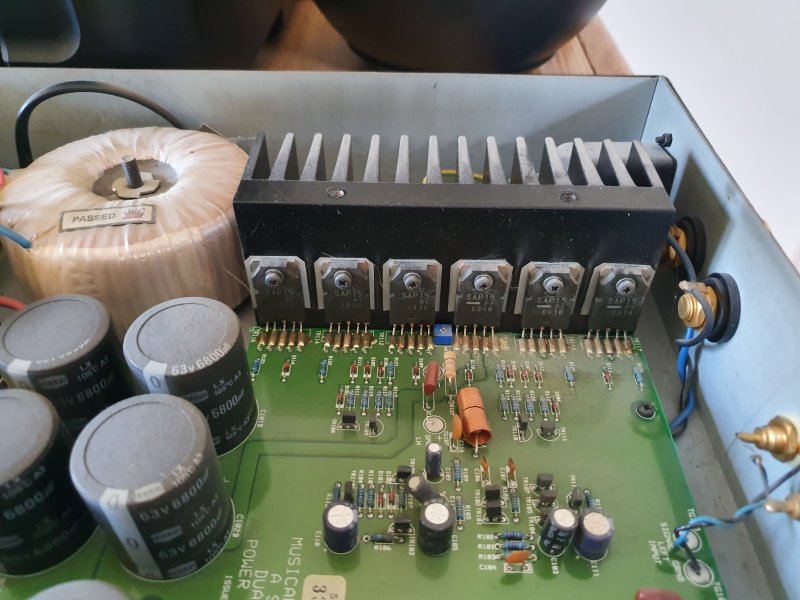

Power amp:
and the reason we did this in the first place..
Power amp:
and the reason we did this in the first place..
Phloodpants
Member
A GFA-565 I am building for myself. (For once haha)
Jadam318
Member
Thank you! I actually put the last of the caps in it earlier today. All I have left is replacing the glass (it came in over the weekend; just need to install it) and check to see what adjustments are needed. I’m pretty stoked about it! I have a crappy pair of speakers in my shop for testing, and I’ve never heard them sound so good. I have a thread going for it in the solid state forum. I’ll be updating soon. I’ve taken LOTS of notes for next time.
Please forgive lousy pics, but this seems like enough of a rare bird that it might justify a post. A Sumo Nine power amplifier. Elegantly simple physically, as it is electronically.
The "bridge" across the middle of the horizontal circuit board lends some cooling to the (of course) "bridge" rectifiers that are underneath.
These pictures don't show the tightly-packed ten TO-3 output transistors on each heat sink (with holes drilled for four more!).
The "bridge" across the middle of the horizontal circuit board lends some cooling to the (of course) "bridge" rectifiers that are underneath.
These pictures don't show the tightly-packed ten TO-3 output transistors on each heat sink (with holes drilled for four more!).
