RVT1K
Super Member

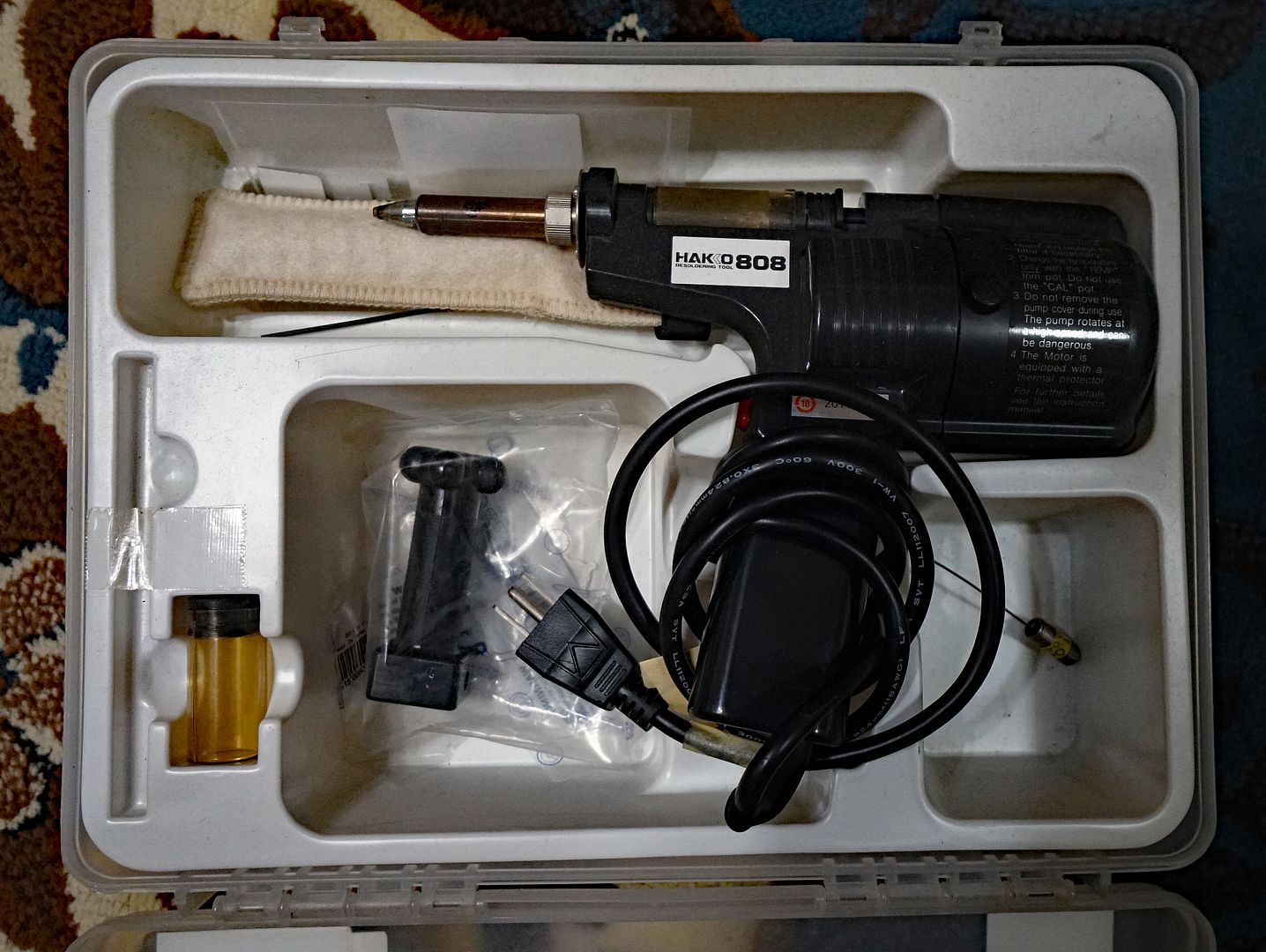

Being new to electronic repair I never expected the underside of the boards to have thick rivers of solder covering large areas of components. After reading about this and asking AI about the whjy it is there, I learned this 'glob' of solder was used to isolate 'like' components and ensure the soldered pieces stayed put.
I think you are seeing the results of something called "wave soldering".
That was a method used for soldering thru-hole circuit boards on a large scale. This is why you sometimes still hear solder side and component side of a circuit board.
The circuit board is placed in a sort of conveyor belt that allows the bottom of the board to be exposed. The board is then dragged over a vat of molten solder. But the vat is being vibrated so that you actually get standing waves in the molten solder. It is the crests of the waves that contact the bottom of the circuit board and the solder is attracted to the various traces and pads that were not covered with solder-resist.
Not the neatest or prettiest but lots of thru-put.
